Special Features

  • Special hi-flow & high head models
  • Long durability due to non-corrosive S.S. body
  • High discharge and low power consumption
  • Excellent performance at low voltage
  • Special design tp prevent winding burn out

Operating Limits

Power Range 0.5 H.P. to 2 H.P. (240 v, 50Hz Ac Single Phase) 3 H.P. to 10 H.P. (240 v, 50Hz Ac Three Phase)
Speed 2800 RPM
Max. Discharge 1200 LPM
Max. Temp. 30° C
Max. Head 250 Feet

Material we are using

Pump Shaft Bearing Bush Sleeve & Couple Impeller/ Diffuser Outlet/Suction Pump Shell Hardware
Stainless Steel Leaded Tin Bush Stainless Steel 410/430 GFN-3 Stainless Steel Jacket Cast /Iron Stainless Steel Stainless Steel

Motor Construction

Part Name Shaft Bearing Bush Trust Bearing Housing Base Stamping Copper Stator Shell Strainer/Cable Guard
Materials S.S. 410 Leaded Tin Bronze S.S Counter/ Teflon Plate Cast Iron C.R.N.G.O. M-45 Grade Special EC Grade As Per IS Standard Stainless Steel Stainless Steel

Products:

  • V-3 Submersible Pump Set
  • V-4 Submersible Pump Set
  • V-6 Submersible Pump Set
  • V-7 Submersible Pump Set

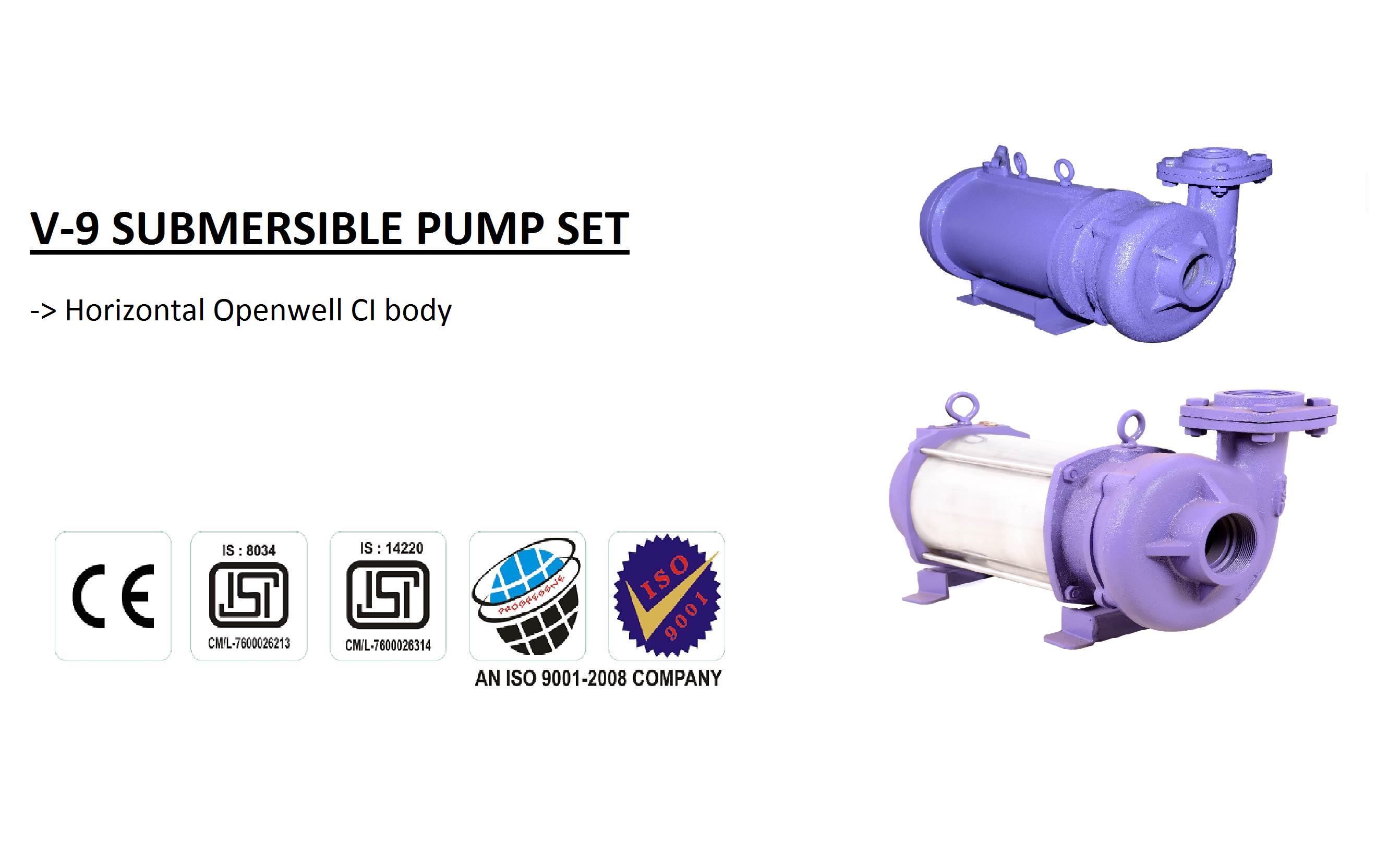

  • V-9 Submersible Pump Set
